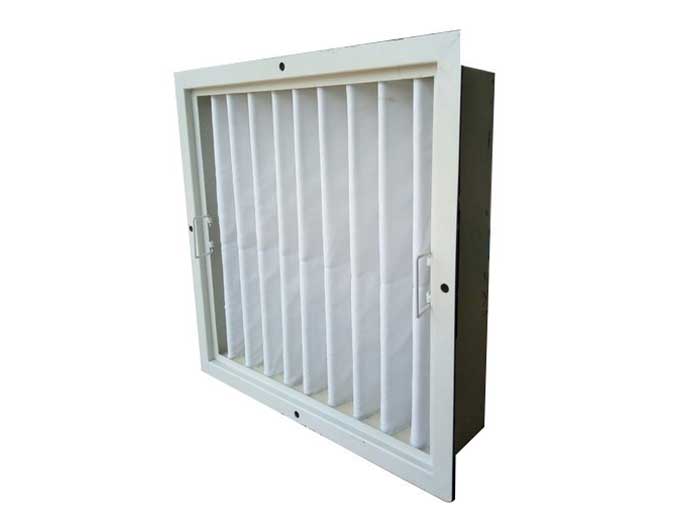

Fine Filter / Microvee Filter
Fine Filter Manufacturers, Suppliers, Exporters in Pune|Fine Filter in Pune, Goa
Micron Air Filter & Equipments Pvt. Ltd. is the reputed Fine Filter manufacturers, suppliers, exporters in Pune, Goa, Chakan, Talegaon, Bhosari, Ranjangaon, PCMC, Talawade. We offer high-quality products at competitive prices.
Micron Air Filter & Equipments Pvt. Ltd. Fine filters are available in the range of 1 to 5 micron (F6/7, F8/9 Class)
Features
- Low initial pressure drop.
- Light in weight and easy to handle.
- High dust holding capacity.
- Uniform Pleating ensure better Airflow.
- Cleanable / Washable.
Applications
- General filtration for Air-conditioning and Air Handling units.
- General air filtration and pre-filtration.
- Spray painting booths and pre-filtration.
- Pharmaceuticals and Healthcare.
- Hospitals.
| Type | Flange / Box Type |
|---|---|
| Frame | Galvanized steel / CRCA powder coated / Aluminium anodized / SS 304 |
| Separators | Aluminium |
| Filter Media | HDPE media / Non woven synthetic media supporting mesh |
| Gasket | Neoprene rubber gasket |
| BS EN 779 Class | G4, F5, F6, F7, F8, F9 |
| Filter Efficiency / Arrestance | F5 - 40 – 60% Arrestance F6/7 - 60- 90 % Arrestance F8/9 - 90 – 95% Arrestance |
| Eurovent Class | EU 6, EU 7, EU 8, EU 9 |
| Class | Micron | Size | Capacity | |||
|---|---|---|---|---|---|---|
| Width | Height | Depth | CFM | CMH | ||
| F5 | 3 | 610 | 610 | 150 | 1015 | 1725 |
| F5 | 3 | 610 | 508 | 150 | 845 | 1435 |
| F5 | 3 | 508 | 508 | 150 | 700 | 1190 |
| F5 | 3 | 610 | 610 | 300 | 2000 | 3400 |
| F5 | 3 | 610 | 508 | 300 | 1650 | 2800 |
| F5 | 3 | 508 | 508 | 300 | 1385 | 2350 |
| Class | Micron | Size | Capacity | |||
|---|---|---|---|---|---|---|
| Width | Height | Depth | CFM | CMH | ||
| F8/9 | > 1 | 610 | 610 | 150 | 1015 | 1725 |
| F8/9 | > 1 | 610 | 508 | 150 | 845 | 1435 |
| F8/9 | > 1 | 508 | 508 | 150 | 700 | 1190 |
| F8/9 | > 1 | 610 | 610 | 300 | 2000 | 3400 |
| F8/9 | > 1 | 610 | 508 | 300 | 1650 | 2800 |
| F8/9 | > 1 | 508 | 508 | 300 | 1385 | 2350 |
| Class | Micron | Size | Capacity | |||
|---|---|---|---|---|---|---|
| Width | Height | Depth | CFM | CMH | ||
| G4 | 5 | 610 | 610 | 150 | 1015 | 1725 |
| G4 | 5 | 610 | 508 | 150 | 845 | 1435 |
| G4 | 5 | 508 | 508 | 150 | 700 | 1190 |
| G4 | 5 | 610 | 610 | 300 | 2000 | 3400 |
| G4 | 5 | 610 | 508 | 300 | 1650 | 2800 |
| G4 | 5 | 508 | 508 | 300 | 1385 | 2350 |
| Class | Micron | Size | Capacity | |||
|---|---|---|---|---|---|---|
| Width | Height | Depth | CFM | CMH | ||
| F6/7 | 1 | 610 | 610 | 150 | 1015 | 1725 |
| F6/7 | 1 | 610 | 508 | 150 | 845 | 1435 |
| F6/7 | 1 | 508 | 508 | 150 | 700 | 1190 |
| F6/7 | 1 | 610 | 610 | 300 | 2000 | 3400 |
| F6/7 | 1 | 610 | 508 | 300 | 1650 | 2800 |
| F6/7 | 1 | 508 | 508 | 300 | 1385 | 2350 |
